How to Troubleshoot Common Issues with Understage Machinery in Theaters?

When your theater's hydraulic lifts stop working during a live show or your rotating platform stops responding to controls, the need to fix the problem quickly grows. The mechanical heart of your stage is the understage machinery that makes scene changes, orchestra pit adjustments, and dramatic actor entrances that keep the audience's attention possible. To properly troubleshoot these complicated systems, you need to know how to use structured diagnostic methods, understand common failure patterns, and know when to call a professional. This book gives technical leaders, venue managers, and procurement professionals in the performing arts useful tips on how to find problems, fix them safely, and keep things running smoothly in performance spaces.

​

Understanding Understage Machinery and Its Common Issues

Under your stage floor, there is a secret world with high-tech mechanical systems that make shows come to life. Usually, these sets have hydraulic lifting platforms, scissor lifts, turntables, trap doors, and wagon systems that move the stage, actors, and equipment in a number of different vertical and horizontal directions.

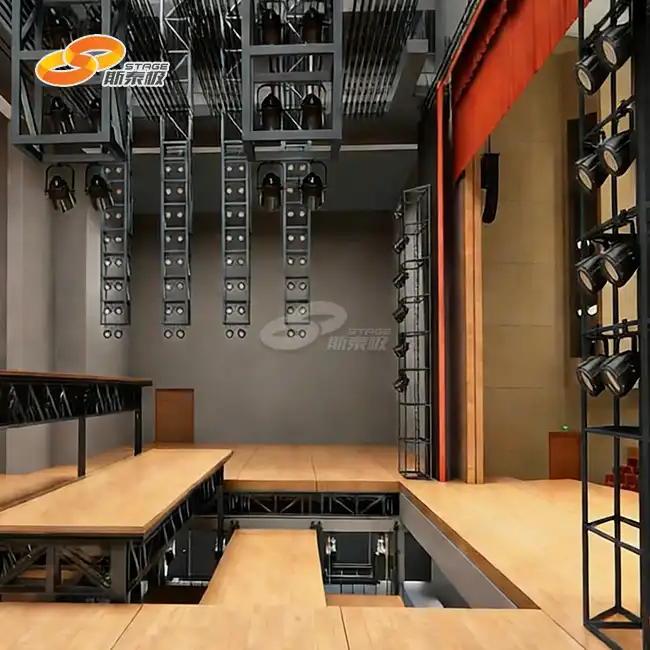

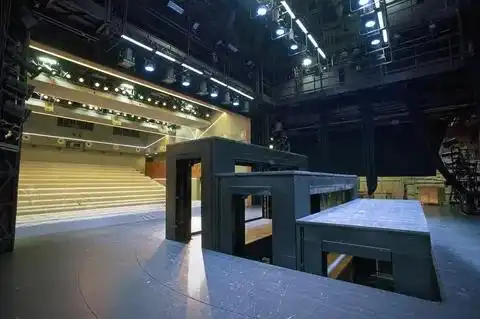

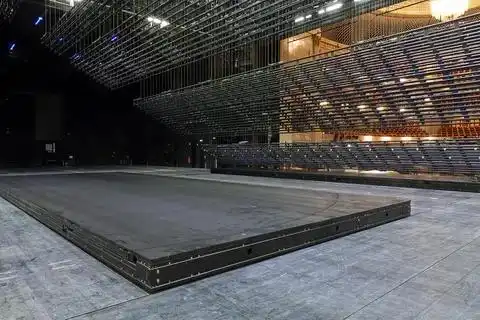

Core Components and Their Functions

Most of the time, hydraulic stage lifts are used as a vertical movement device. These platforms use compressed fluid to precisely raise and lower parts of the stage floor. With today's systems, positioning accuracy is within ±1mm thanks to improved encoder feedback. This keeps performers safe during complicated choreography. Hydraulic cylinders, power units with pumps and motors, control valves that manage fluid flow, and electronic control systems that manage operation routines are all common parts of this setup.

Electric or hydraulic drives on turntables and rotating stages make it possible for scenes to rotate smoothly. These round platforms are built into the stage floor and allow the actors and props to move around while keeping the surfaces level. With spring-loaded, counterweight, or powered lift systems hidden under removable stage floor pieces, trap door mechanisms make things appear or disappear quickly.

Frequent Problems in Theater Applications

About 40% of all stage lift problems are caused by problems with the hydraulic system. Fluid leaks from old seals let air into the system, which makes it work spongily and move around in its position. Hydraulic oil that is contaminated speeds up the wear and tear on parts, and not enough fluid can cause the pump to overheat and break. Changes in temperature in stage basements that aren't heated make these problems worse by changing the viscosity of the fluid and the performance of the seal.

Electrical control problems make it hard for operator stations and machines to talk to each other. When limit switches are broken, they don't signal the endpoints of positions, which can lead to overrun risks. In damp understage areas, corroded connections stop the flow of power, and replacing parts in old control systems that don't work with each other during fixes is a pain.

Mechanical wear shows up as strange noises, movement that won't go away, and less load capacity. When lift platforms are static for a long time, the guide wheels get flat spots that make the movement jerky. When wagon systems' drive chains get longer, they create slack that makes it harder to repeatably place things. When bearings in rotating machinery break, they make grinding sounds and make friction worse.

​

Root Causes Behind Equipment Failures

Intensive performance plans put a lot of stress on mechanical parts over time. A big opera house might do more than 200 lift movements a week, which speeds up the wear and tear process compared to places that are only used occasionally. When maintenance intervals are too short, small problems get worse. For example, if you don't fix a small hydraulic leak for months, it turns into a big failure.

Conditions below stages put equipment's longevity to the test. Electrical parts and metal surfaces rust when there is a lot of wetness in the air. As scenery is being built, dust builds up and blocks ventilation holes and contaminates hydraulic tanks. Extreme temperatures cause periods of expansion and contraction that make fasteners loose and weaken seals.

Operator mistakes are a big reason why things break down before they should. When platforms are loaded beyond their rated capacity, they put stress on the structural parts and hydraulic systems. Rapid loops of speeding up and slowing down put stress on drive components. When operators don't get enough training, they try to fix problems in the wrong way, which makes the problems worse.

Step-by-Step Troubleshooting Guide: Diagnosing and Resolving Issues

Instead of replacing parts right away, thorough observation is the first step to solving understage equipment problems. This orderly approach keeps safety standards high during the diagnostic process, saves time, and stops costs that aren't necessary.

​

Initial Problem Identification

Write down exactly what signs you can see before you touch any controls. Write down whether the problem happens all the time or sometimes, at certain places or all along the travel range, and when the machine is loaded or not. Video recording strange movements is helpful for technicians and makers when they are analyzing them.

Make sure the problem isn't caused by operator error or bad control code but by a mechanical failure. Look over the most recent changes to the system, such as new show programming, maintenance work, or changes to the surroundings. In modern control systems, fault codes that pinpoint particular subsystem failures can often be found in the error logs.

Hydraulic System Diagnostics

Start your visual inspection at the power unit. Look at the amount of fluid in the reservoir and for obvious leaks around the connections for the cylinders, pump housings, and valve bodies. The color of hydraulic fluid should be clear amber, with no metallic bits or milky spots that would mean the water is dirty. Low amounts of fluid mean there are leaks that need to be fixed right away before the equipment can be used.

Pressure testing finds pumps and valves that aren't working as well as they should. Using calibrated gauges, compare the system pressure to what the maker says it should be, which for stage lifts is usually between 2000 and 3000 PSI. Less pressure means that parts of the pump are worn out or that an internal opening is leaking. When there is too much pressure, it means that flow paths are stopped or relief valves aren't working properly, which can lead to dangerous operating conditions.

By keeping an eye on the temperature, operating inefficiencies can be seen. If hydraulic fluid is working above 140°F, it means that it isn't cooling well enough, the oil is dirty, which increases friction, or the pump is cavitating because the input flow is too low. Infrared thermometers quickly find hot spots in valves and cylinders that point to specific parts that are broken.

Electrical System Evaluation

Safety rules say that lockout/tagout steps must be followed in full before electrical parts can be inspected. Make sure that the power disconnects are open and marked so that they don't get turned on by chance while diagnostics are being done. When working near electrical lines, make sure you have the right safety gear, like insulated gloves and safety glasses.

Check the voltage at the motor's connections and see if it matches the specs on the nameplate. Low voltage means that the supply isn't strong enough or that the connection is too resistant. A voltage imbalance between phases means that there are problems with the electrical system that need to be fixed by an electrician. Multimeters can be used to check the continuity of the control circuit and find broken wires or switches in safety interlocks.

Check limit switches and proximity sensors for damage, make sure they are securely mounted, and make sure they are set up correctly. These important safety devices stop overtravel, which could hurt workers or damage equipment. Clean the sensor faces and make sure that the target's position meets the gap requirements set by the maker. For inductive proximity switches, these are usually 2 to 8 mm.

Mechanical Component Assessment

Pay close attention to the sounds that the machine makes and tell the difference between regular noises like grinding, squealing, or knocking that could mean that something is worn out or not aligned right. When a bearing fails, it grinds and vibrates more, and when fasteners are free, they knock every so often in time with the movement cycles. Rattling sounds happen when chain drives are too worn out or not properly tensioned.

Watch the platform move at different speeds to find out how smooth the movement is. jerky action could mean that the guides are stuck, the rollers are broken, or the drive force is being applied unevenly. Use precision levels to make sure the platform stays level throughout the whole trip range. If it tilts, it means the structure is deforming, the guide systems are worn out, or there are problems mounting the hydraulic cylinder.

Check understage equipment for cracks in structural parts, especially at weld joints and other high-stress connection places. Testing with a dye penetrant shows tiny cracks that can't be seen with the naked eye. Check the torque of the fasteners against the specs. Over time, vibrations from operation can loosen connections.

Standard Repair Techniques

Adding lubrication to mechanical systems can often fix problems with noise and stiffness. Follow the maintenance schedules and use the greases that the maker recommends on the guide bearings, roller assemblies, and pivot points. Do not use too much oil, as it draws dust and causes problems with contamination. Get rid of any old oil buildup before adding new material.

When replacing a hydraulic seal, it's important to be very clean and use the right fitting methods. Even tiny particles of dirt brought in during seal changes can cause the seal to fail too soon. Clean up after yourself, make sure all the areas that touch each other are clean, and use the right tools for installing seals to avoid damage during assembly. Instead of just fixing the part that looks broken, replace all the seals in a cylinder system at the same time.

Fixing electrical connections gets rid of a lot of control problems that happen from time to time. Use the right contact cleaners to get rid of rust on the terminals, then tighten the connections to the required torque levels and cover them with dielectric grease to prevent corrosion from happening again. Replace broken wire with conductors that are rated correctly, making sure to keep the original routing and strain relief arrangements.

Real-World Problem Resolution Example

The main lifting and rotating stage platform at the Grand Theater of Haikou College of Economics had trouble working consistently. This was a key part of student performances and school events. Our diagnostic process showed that contaminated hydraulic fluid was lowering system pressure by 30% and that corroded limit switch connections were making the control reaction less often. We changed the hydraulic fluid, put in high-efficiency filters, cleaned and sealed the electrical connections, and set the positioning sensors back to the correct position. The methodical approach got the system working properly again in just one service visit, saving over $15,000 in part replacement costs. The venue now does preventative checks every three months, which keeps problems like this from happening again.

Maintenance Tips to Prevent Understage Machinery Failures

By avoiding emergency fixes, extending the life of equipment, and keeping it running reliably, preventative maintenance gives a huge return on investment. Structured maintenance plans usually cut down on failures by 60 to 70% compared to reactive repair methods.

Routine Maintenance Activities

Taking care of hydraulic fluid is the most important thing that can be done to keep stage lifts from breaking down. Once every three months, use a lab analysis or a field test kit to check the state of the fluid. The kits will measure the amount of contamination, water content, and additive depletion. Replace the fluid at the intervals recommended by the maker, which is usually every 2,000 to 3,000 hours of use or once a year, whichever comes first. Install good filter systems that can pick up particles as small as 10 microns. This will stop abrasive contamination that wears down parts faster.

Schedules for lubrication should be written down in maintenance logs, and the work should be checked off as completed. Linear guide bearings need to be oiled every 500 hours of use, or once a month in places that get a lot of use. Every 1000 hours, rotating parts like spinning drives need to be checked. Use the right type of lubricant that the maker recommends. Using products that aren't meant to work together leads to chemical breakdown and faster wear.

Calibration of the electrical system makes sure that the controls work correctly and that the safety functions stay intact. Check the function of the limit switches once a month by pressing the switches by hand and watching how the control system reacts. Every week, test the emergency stop wires to make sure they can cut the power right away. During thorough examinations every six months, check the insulation around the wiring to find signs of wear and tear before they happen.

Safety Protocols for Maintenance Personnel

During all maintenance work, lockout/tagout rules must be strictly followed. Physical locks on power disconnects and informational tags keep equipment from turning on by mistake. Assign someone to be in charge of lockouts and making sure that everyone leaves the work area before turning systems back on. In hydraulic systems, lines must be disconnected before the pressure can be released. If the pressure stays high, fluid can be violently thrown out, which can cause serious injuries.

When working under stage platforms, confined space rules apply. Before entering, there must be enough ventilation, tracking of oxygen and toxic gases in the air, and rescue equipment that is ready to go. Communication systems let people working below steps stay in touch with those in charge of the movement systems above.

Safety glasses to protect against hydraulic fluid spray, gloves for chemical and mechanical dangers, and steel-toed shoes to protect against falling understage equipment parts are all required pieces of personal protective equipment. Wearing high-visibility clothing helps people stay seen in dark places under the stage.

Advanced Maintenance Technologies

Automated condition tracking systems keep an eye on the health of equipment all the time. Vibration sensors can tell when bearings are wearing out weeks before you can hear any problems. This lets you plan repair for when it's most convenient for you. In hydraulic circuits, pressure sensors detect slowing performance drops that point to problems that are starting to appear. Temperature tracking shows that the cooling system isn't working right and that contaminated lubricants cause more friction.

With digital maintenance logging, databases are used instead of paper records to keep track of service history, component lifecycles, and failure trends. These systems set automated maintenance alerts based on working hours or regular times on the calendar, making sure that tasks are never missed. Trend analysis finds problems that keep happening, which can lead to changes in the design or upgrades to parts.

Manufacturer-supported remote tests let engineering experts help with troubleshooting in real time, no matter where the event is being held. Technicians can use secure network connections to download system logs, watch operating parameters, and walk local staff through diagnostic steps. This feature cuts the time it takes to solve complicated problems by a huge amount, and it lets you get professional-level analysis without having to wait for trip delays.

When to Seek Professional Support and Services?

Recognizing the boundaries of in-house repair capability protects personnel safety and prevents well-intentioned troubleshooting from escalating minor problems into major equipment damage requiring complete system replacement.

Indicators Requiring Specialist Intervention

Structural damage including cracked welds, bent guide rails, or deformed platform frames demands immediate professional evaluation. These failures compromise load-bearing capacity and create catastrophic collapse risks. Operating damaged structural components endangers performers, technicians, and audiences while potentially triggering liability exposures that dwarf repair costs.

Hydraulic cylinder failures manifesting through rod scoring, barrel deformation, or mounting bracket cracks require factory rebuilding or replacement. Attempting field repairs on these precision components without appropriate equipment and clean room environments introduces contamination and improper assembly causing premature re-failure. Cylinder replacement by qualified technicians typically takes 2-4 days including system re-commissioning and load testing verification.

Control system programming problems beyond basic parameter adjustment benefit from manufacturer engineering support. Modern stage automation platforms incorporate complex motion profiling, safety interlock logic, and synchronized multi-axis coordination that requires specialized software tools and training for modification. Incorrect programming creates safety hazards including unexpected movement, interlock bypass, and collision between moving components.

Selecting Qualified Service Providers

Authorized dealers maintain manufacturer certification demonstrating technical competency through formal training programs and performance evaluations. These providers access proprietary diagnostic tools, technical documentation, and engineering support unavailable to independent repair shops. Warranty preservation typically requires using authorized service networks, as unauthorized repairs void manufacturer obligations.

Technician qualifications should include documented experience with theatrical machinery systems, not merely general hydraulic or electrical backgrounds. Stage equipment presents unique challenges including safety-critical applications, acoustic performance requirements, and integration with show control systems. Request references from similar venues and verify licensing appropriate to local jurisdiction requirements.

Service response time commitments vary between providers and should align with your operational criticality. Premium service contracts guarantee response within 4-24 hours, appropriate for professional theaters with frequent performances and limited schedule flexibility. Standard arrangements typically promise 2-5 business day response, acceptable for educational and community venues where advance planning allows accommodation of repair windows.

Spare Parts Management and Upgrades

Maintaining critical spare parts inventory enables rapid repair of common failure modes without waiting for supplier shipping. Stock items typically include hydraulic seals, electrical contactors and relays, limit switches, and drive belts or chains. Manufacturers provide recommended spare parts lists based on expected wear patterns and historical failure data from similar installations.

Component obsolescence challenges emerge as equipment ages beyond 15-20 years. Control system electronics become increasingly difficult to repair as manufacturers discontinue replacement parts for outdated technology. Proactive upgrade planning replaces obsolete components before failure forces rushed decisions. Modern control retrofits often improve functionality while ensuring long-term supportability—we successfully upgraded the control systems at multiple educational facilities, maintaining existing mechanical platforms while implementing contemporary automation providing enhanced safety features and easier operation.

Conclusion

Systematic troubleshooting, disciplined preventive maintenance, and knowing when to call in a professional are all important parts of keeping understage machinery. To keep up with tight production plans, hydraulic lifts, turntables, and trap systems need to have their fluids cleaned, their electrical connections checked, and their parts properly aligned. The methods described here make it easy for technical teams to quickly fix common problems, and safety rules keep people safe while repairs are being made. It is more valuable in the long run to compare pieces of tools based on their total ownership costs instead of just their purchase price. Building relationships with qualified service providers guarantees access to specialized knowledge when problems become too complicated for in-house solutions. This maintains operational continuity that keeps performances going smoothly and keeps audiences interested.

FAQ

How often should we perform maintenance on hydraulic stage lifts?

Comprehensive maintenance should occur quarterly for professional venues operating daily, including hydraulic fluid analysis, filter replacement, seal inspection, and electrical connection verification. Monthly quick inspections checking fluid levels, unusual noises, and safety device function catch developing problems early. Educational facilities with occasional use can extend intervals to semi-annual comprehensive service while maintaining monthly safety checks. Document all maintenance activities in permanent logs tracking component lifecycles and identifying recurring issues suggesting system improvements.

What causes most hydraulic system failures in stage equipment?

Contaminated hydraulic fluid accounts for approximately 70% of hydraulic failures through abrasive wear that damages precision components. Contamination enters through inadequate filtration, seal wear allowing external dirt intrusion, and improper maintenance procedures introducing particles during fluid changes. Water contamination from condensation in improperly sealed reservoirs causes additive depletion and promotes corrosion. Maintaining clean fluid through quality filtration and regular testing dramatically extends component life and reduces failure frequency.

Can we troubleshoot control systems ourselves or should we call manufacturers?

Basic troubleshooting including verifying power supply, testing safety interlocks, and checking error codes displayed on operator interfaces falls within typical in-house capabilities. However, modifying control programming, diagnosing complex electrical faults, or addressing communication failures between system components requires specialized knowledge and proprietary diagnostic tools available only through manufacturer-trained technicians. Attempting advanced troubleshooting without proper expertise risks creating additional problems while voiding warranty coverage.
