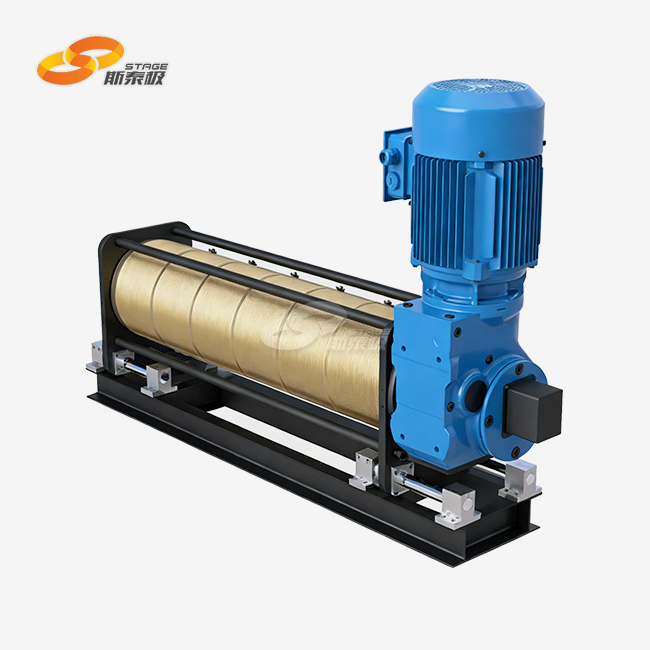

Zero-fleet Horizontal Stage Winch
Product Structure:
It consists of a double-brake reduction motor, a drum, a vertical plate, a synchronous screw nut assembly, a precision guide rail, a base, a loose rope detection device, and a travel limit device;
- Product Description
Zero-fleet Horizontal Stage Winch - Professional Theater Equipment
When you need precise theatrical rigging that delivers consistent performance night after night, the Zero-fleet Horizontal Stage Winch stands as your reliable partner. This advanced horizontal winching system eliminates fleet angle variations through innovative engineering, ensuring your wire rope maintains perfect alignment throughout its entire range of operation. Unlike traditional winches that suffer from side-loading stress and uneven wear patterns, our product provides constant line pull and exceptional durability for demanding stage applications.
What Makes Our Horizontal Stage Winch Special
Your organize preparations request gear that performs immaculately beneath weight. Our level organize winch consolidates precision-machined helical groove designs on the drum surface. This building detail secures the rope way and conveys the zero-fleet point capability that sets our hardware apart.
The double-brake decrease engine gives excess security frameworks. You get peace of intellect knowing that two free braking instruments ensure your entertainers and hardware. The synchronous screw nut get together works with accuracy direct rails to keep up smooth, controlled movement.
Key Technical Advantages
Ultra-Quiet Operation
Your gathering of people shouldn't listen the apparatus. Our winches work underneath 50dB, guaranteeing organize acoustics stay perfect amid exhibitions. The accuracy building minimizes mechanical commotion and vibration.
Extended Wire Rope Life
You'll spare altogether on substitution costs. The zero-fleet plan avoids rope distortion and untimely wear. Your wire ropes final longer since they involvement reliable stacking patterns.
Shock Stack Elimination
Traditional winches make sudden stretch when ropes move between drum layers. Our level plan disposes of these stun loads totally. Your gear encounters smooth, unsurprising powers all through operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Travel（m） | 12,16,20,24,28 |
| Load（kg） | 600,800,1000,1200,1400 |
| Speed（m/s） | 0.2,0.4,0.6,0.8,1.0,1.2 |
| Drops No.（pcs） | 3,4,5,6 |
| Rope Dia.（mm） | 5,6,7 |
| Voltage | AC380V |
Safety Standards and Certifications
Your safety requirements are our priority. All our Zero-fleet Horizontal Stage Winch equipment meets CE certification standards and EN 17206 machinery directives. We comply with DGUV V17 (formerly BGV C1) entertainment industry regulations.
Every winch undergoes rigorous testing protocols. We perform 125% static load tests and 110% dynamic load tests before shipment. These procedures guarantee operational reliability in your venue.
The Safety Integrity Level 3 (SIL3) rating provides additional assurance. You're investing in equipment designed for high-stakes theatrical applications where failure isn't an option.
Professional Applications
Theater Productions
Complex scene changes require solid hardware. Our level organize winches handle overwhelming set pieces, flying impacts, and robotized view developments. Different units synchronize flawlessly for facilitated lifting operations.
Concert Venues
Your lighting rigs and acoustic boards require exact situating. The zero-fleet plan guarantees steady execution amid fast signal arrangements and complex robotized movements.
Corporate Events
Dynamic establishments request responsive gear. Our winches give the accuracy control required for dynamic shows and building lighting effects.
Installation and Service Excellence
You get comprehensive back all through your venture lifecycle. Our building group gives plan discussion, custom details, and establishment direction. We get it that each setting presents special challenges.
The secluded plan disentangles upkeep strategies. Standard components decrease save parts stock necessities. Your specialized staff can perform schedule upkeep with negligible specialized training.
Why Choose Stage (Shanghai)?

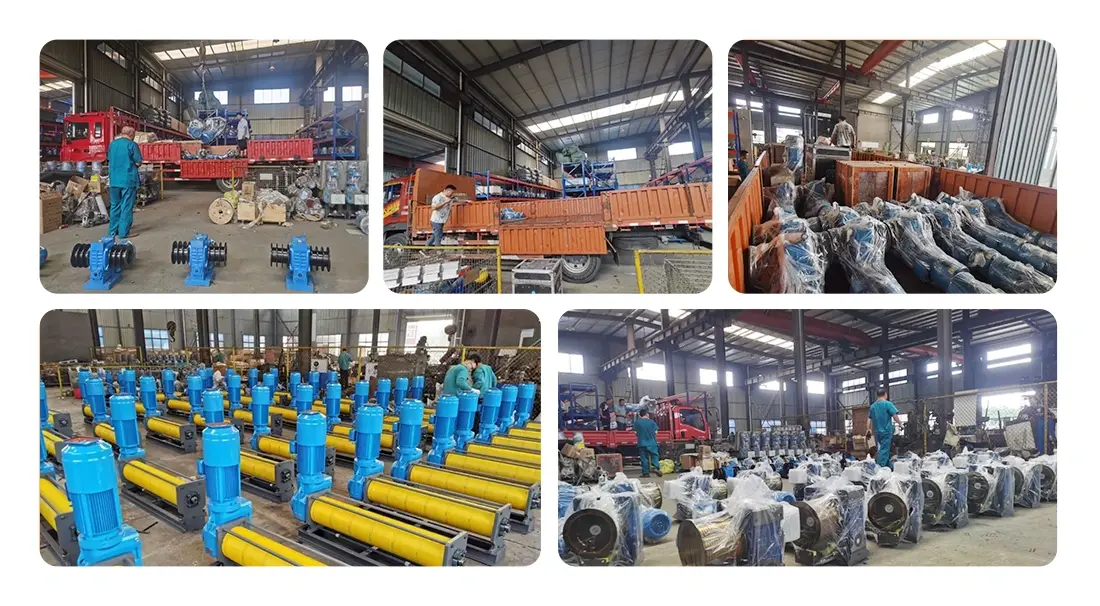

Direct fabricating gives you competitive estimating without compromising quality. Our coordinates generation offices handle everything from starting plan through last commissioning. You work straightforwardly with the source, dispensing with pointless markups.
Custom arrangements address your particular prerequisites. Whether you require adjusted stack capacities, specialized mounting arrangements, or interesting control interfacing, our designing group conveys custom-made arrangements.
Ready to Enhance Your Stage Operations?
Transform your venue with professional-grade horizontal stage winches that deliver consistent performance and exceptional reliability. Our Zero-fleet Horizontal Stage Winch technology provides the precision control your productions deserve.
Contact our technical specialists today for detailed specifications and custom quotations. Email us at info@shstage.com to discuss your specific requirements and discover how our innovative rigging solutions can elevate your stage capabilities.
