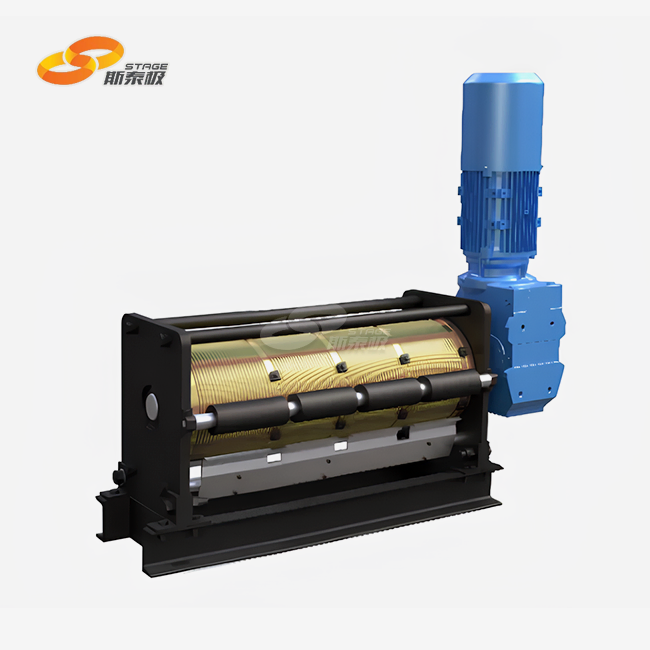

Horizontal Stage Winch for Battens
Features:
· Compact structure, horizontal installation.
· The steel rope is wound in a single layer, with high transmission accuracy and uniform force on each lifting point.
· Adopt helical spiral bevel gear reducer with high transmission efficiency.
· Modular design, easy to maintain, economical, and easy to use;
· Complete and reliable safety functions.
- Product Description
Horizontal Stage Winch for Battens - Professional Batten Rigging Solutions
Transform your theater's batten system with our premium Horizontal Stage Winch for Battens. This specialized rigging equipment delivers precise control for lighting bars, curtain battens, and scenic elements. Designed for theaters with limited wing space, our compact horizontal winch system maximizes your performance area while ensuring reliable batten operations. Whether you're managing heavy lighting trusses or delicate acoustic panels, our advanced winch technology provides the precision and safety your venue demands. Built by Stage (Shanghai) Stage Technology Engineering Co., Ltd., these professional-grade systems meet the highest industry standards for theatrical rigging applications.
Why Choose Our Horizontal Batten Winch System?
Exactness Building for Idealize Performance
Your theater merits gear that performs immaculately night after night. Our secure winch frameworks include single-layer rope winding innovation that guarantees steady line drag and smooth operation. This plan avoids rope cover and keeps up uniform pressure over all lifting points.
The helical winding incline equip reducer conveys uncommon transmission productivity. You'll encounter calm operation underneath 50dB, guaranteeing your winch won't meddled with arrange acoustics amid performances.
Space-Saving Level Design
Many theaters battle with restricted wing space. Our even mounting setup understands this common challenge. The compact structure fits into tight fixing ranges whereas conveying capable lifting capabilities.
This plan approach permits for high-density establishment closer to the framework. You can maximize your fly hang utility without compromising on lifting capacity or security features.
Comprehensive Security Highlights
Safety remains our top priority in every batten rigging application. Our Horizontal Stage Winch for Battens includes multiple protective systems:
Dual Braking Systems:
- Mechanical load brake automatically holds loads when lifting stops
- Electromagnetic backup brake provides additional holding power and redundancy
Limit Protection:
- Upper and lower limit switches prevent overextension
- Emergency stop function enables immediate shutdown during hazards
Load Control Features:
- Self-sustaining gearbox design maintains control during motor failure
- Controlled lifting speed reduces shock loading on delicate equipment
Technical Specifications
| Parameter | Specification |
|---|---|
| Travel（m） | 12,16,20,24,28 |
| Load（kg） | 600,800,1000,1200,1400 |
| Speed（m/s） | 0.2,0.4,0.6,0.8,1.0,1.2 |
| Drops No.（pcs） | 3,4,5,6 |
| Rope Dia.（mm） | 5,6,7 |
| Voltage | AC380V |
Versatile Applications for Your Theater
Lighting Secure Systems
Control your lighting bars with exactness and certainty. Our winch frameworks handle overwhelming lighting trusses up to 1000kg+ whereas giving smooth, calm operation. The zero armada point plan guarantees vertical drops without sidelong travel, culminate for complex lighting arrangements.
Curtain and Background Management
Manage arrange shades, scrims, and backdrops easily. The reliable line drag guarantees indeed texture development and avoids bunching or uneven hanging. Your organize team will appreciate the dependable, repeatable situating capabilities.
Acoustic Board Control
Adjust acoustic components easily amid exhibitions. The ultra-quiet operation won't aggravate your group of onlookers, whereas exact speed control secures fragile acoustic gear from stun loads.
Advanced Control and Integration
Our secure winch frameworks coordinated consistently with advanced theater control frameworks. Variable recurrence drives (VFDs) give smooth speed control and exact situating. This innovation empowers complex scene changes rapidly and safely.
The secluded plan makes upkeep clear and conservative. Your specialized staff can effectively get to components for schedule benefit, minimizing downtime between productions.
Why Stage (Shanghai) Leads the Industry?
Direct Fabricating Advantages
As a coordinate producer, we control quality from plan through conveyance. Our in-house generation guarantees competitive estimating and speedy lead times - regularly 15-30 days for standard models and 30-45 days for custom configurations.
Proven Worldwide Experience
Our building group brings a long time of specialized encounter in showy fixing. We've effectively actualized items in theaters around the world, persistently improving to meet advancing industry needs.
Complete Bolster Biological system
We provide comprehensive support throughout your winch system's lifecycle:
- Custom design consultation
- Professional installation guidance
- Commissioning and testing
- Ongoing maintenance support
- 24/7 multilingual technical assistance
Ready to Upgrade Your Batten System?
Don't let outdated rigging limit your creative possibilities. Our Horizontal Stage Winch for Battens delivers the reliability, precision, and safety your theater deserves. Whether you're planning a new installation or upgrading existing systems, our team provides the expertise to ensure success.
Contact our specialists today at info@shstage.com to discuss your specific batten rigging requirements. We'll work with you to design the perfect horizontal winch solution for your venue's unique needs and space constraints.
