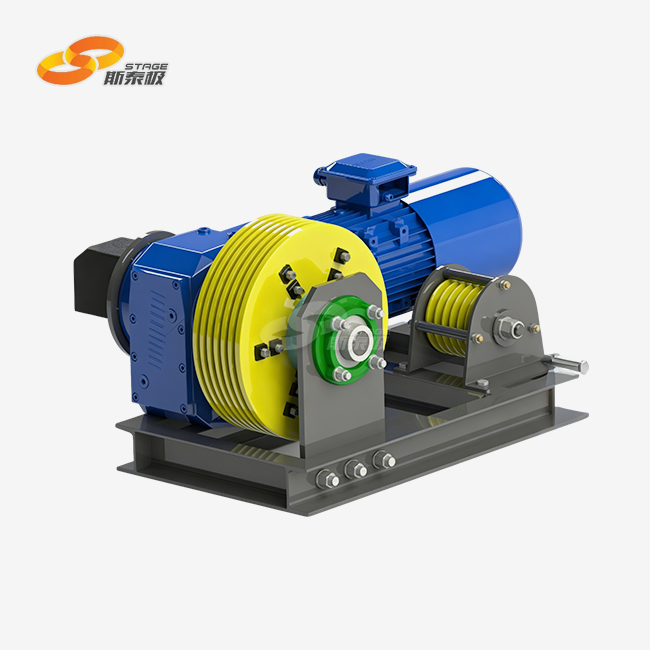

Pilewind Stage Winch
Product Structure:
Composed of dual brake deceleration motor, reel, supporting pulley, base, and travel limit device;
- Product Description
Pilewind Stage Winch: Professional Theatrical Rigging Solutions
What Makes Our Pilewind Stage Winch the Smart Choice for Your Venue?
When you need reliable stage rigging equipment that saves space without compromising performance, the Pilewind Stage Winch delivers exactly what your venue demands. This specialized hoisting mechanism revolutionizes how theaters handle scenery, lighting fixtures, and acoustic elements by utilizing a unique vertical winding system. Unlike traditional drum hoists that require extensive lateral space, our product coils wire ropes vertically within narrow drum channels, creating an incredibly compact footprint perfect for venues with limited technical galleries or tight fly towers.
Understanding Pilewind Technology: Engineering Excellence for Stage Professionals
How Does a Pilewind System Work?
The product operates on a fundamentally different principle than conventional drum winches. Instead of winding wire rope horizontally across a long cylinder, this innovative system allows multiple steel wire ropes to pile vertically on top of themselves within segmented drum channels.
This creates what engineers call a "zero fleet angle" system. Your lift lines drop perfectly vertical without lateral travel. You get precise positioning every time.
The beauty lies in its simplicity. Multiple wire ropes wind simultaneously on a single segmented drum. This ensures inherent mechanical synchronization of lifting points. No complex electronic alignment needed.
Technical Specifications & Performance Data
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Safe Working Load (SWL) | 250kg - 1000kg | Up to 1500kg |
| Lifting Speed | 0.1m/s - 1.2m/s | Variable with VFD |
| Wire Rope Capacity | 2-6 lines | Custom configurations |
| Power Supply | 380V/50Hz | 220V/60Hz available |
| Motor Type | Dual brake reduction motor | Explosion-proof options |
| Control System | Manual/Remote | DMX integration |
| Operating Temperature | -10°C to +40°C | Extended range available |
Key Applications: Where Excellence Meets Functionality
Small to Mid-Sized Theaters
Your lighting bars need reliable lifting solutions that work in tight spaces. The Pilewind Stage Winch manages 4-6 lift lines on a single narrow shaft. Perfect for venues without traditional fly towers.
Overwhelming lighting trusses move easily for upkeep and exhibitions. No sidelong armada separate required like drum winches need.
Multi-Purpose Corridors & Instructive Venues
School auditoriums and adore centers advantage from the compact motor-gearbox setup. Introduce units in tight ceiling voids where upkeep get to challenges conventional systems.
Acoustic clouds and scenery shades alter absolutely. Tall unwavering quality things when get to is difficult.
Television Studios & Broadcast Facilities
Silent operation amid live broadcasts sets this framework separated. Near-silent execution keeps up proficient sound standards.
Green screens and secluded view sets fly easily. Person lift focuses permit tilting and exact situating of set pieces.
Advanced Safety Features: Your Peace of Mind Guaranteed
Dual Braking Systems
Electromagnetic failsafe brakes anticipate inadvertent drops. Indeed amid control disappointments, your loads remain secure.
Precision Control Technology
Rotary restrain switches give correct situating. Variable Recurrence Drives compensate for changing drum distance across as rope heaps up.
Rigorous Testing Standards
Every unit experiences 125% inactive stack testing and 110% energetic stack testing. We surpass industry security requirements.
High-grade steel spines contain rope stack weight. Quality designing avoids rope slippage or layer collapse.
Why Choose Stage Technology Engineering?

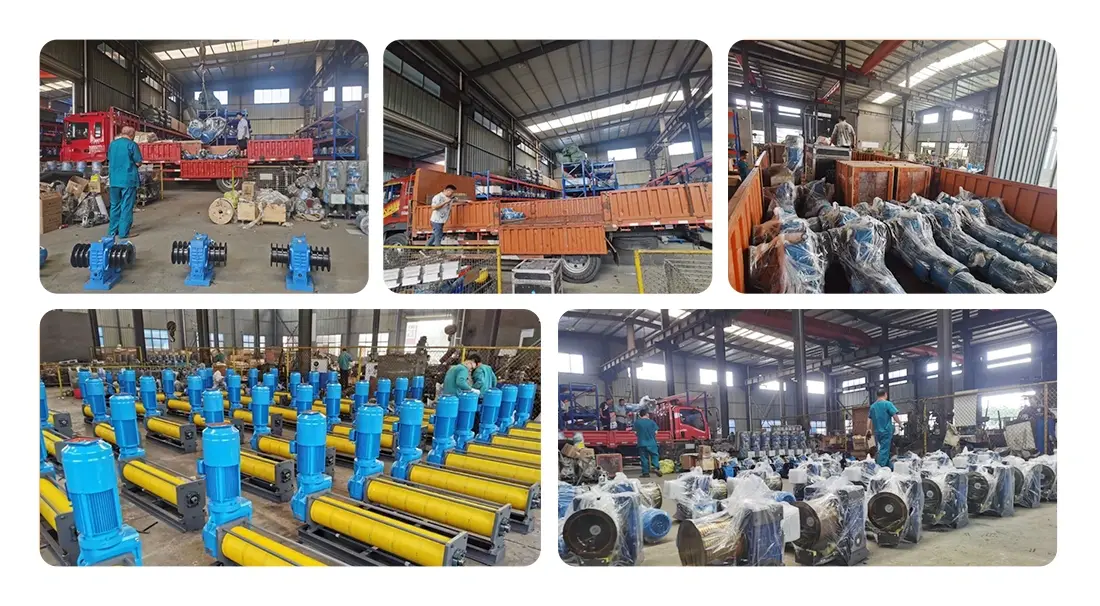

Coordinate Fabricating Advantage
Our coordinates generation disposes of agent costs. You get factory-direct estimating with straightforward, competitive rates.
Standard models transport in 15-30 days. Custom setups take 30-45 days. In-house generation guarantees steady quality control.
Customization Expertise
Your setting has special prerequisites. Our building group gives ODM/OEM administrations custom-made to your space, stack, and execution needs.
Close collaboration guarantees items meet both inventive and useful prerequisites. We get it theater operations.
Comprehensive Support
Installation, commissioning, and upkeep bolster comes standard. Our 24/7 multilingual specialized group addresses issues promptly.
Spare parts accessibility and normal follow-up minimize your coordination endeavors. We're accomplices in your success.
Technical Advantages That Matter
The limit impression fathoms basic space limitations in advanced settings. Dark box theaters and school corridors especially advantage from this compact design.
Multi-line lifting frameworks ended up cost-effective without complex diverter pulley formats. Your budget extends advance whereas keeping up proficient standards.
Electronic emolument by means of VFD keeps up reliable execution as drum breadth changes amid operation. Accuracy things in proficient applications.
Ready to Upgrade Your Rigging System?
Transform your venue's capabilities with proven pilewind technology. Our experienced team stands ready to design the perfect solution for your specific requirements.
Contact our specialists today at info@shstage.com to discuss your project needs. Let's engineer excellence together.
Your venue deserves reliable, space-efficient rigging solutions. The Pilewind Stage Winch delivers both performance and peace of mind for years of dependable operation.
