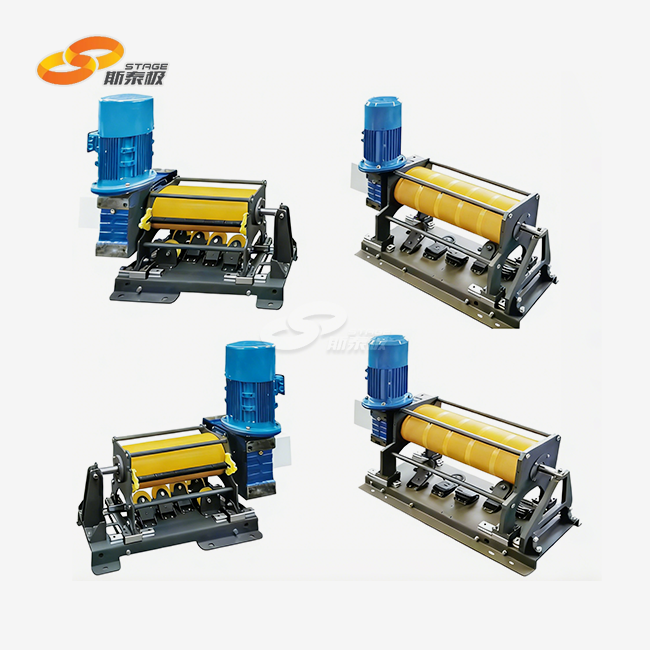

Stage Single-Layer Winding Boom Machine

 Precision Engineering for Professional Stage Applications

Our Stage Single-Layer Winding Boom Machine represents the pinnacle of professional theater rigging technology. This specialized electromechanical lifting framework conveys unmatched exactness for theaters, concert corridors, and broadcast studios around the world. Not at all like customary multi-layer winches, this machine highlights a special single-layer winding plan that guarantees steady execution and supreme security. You'll involvement sub-millimeter situating exactness and consistent integration with your existing organize robotization frameworks. The machine kills rope smashing and auxiliary distortion, making it the gold standard for synchronized, beautiful automation.

Technical Specifications

Advanced Engineering Features

Compact Even Design

Our single-layer winding framework highlights a space-efficient level establishment. The zero-fleet structure permits steel rope release both vertically and evenly. This adaptability makes establishment less demanding in tight spaces whereas keeping up ideal performance.

Precision Single-Layer Winding

The steel rope winds in a single layer over the whole drum. This plan guarantees tall transmission exactness and uniform drive conveyance over all hanging focuses. You get steady lifting speeds without complex recompense algorithms.

High-Efficiency Control Transmission

We coordinated helical slope adapt reducers for most extreme transmission proficiency. The exactness adapting minimizes vitality misfortune whereas conveying smooth, calm operation. Your preparations advantage from dependable control exchange and diminished operational costs.

Modular Plan Philosophy

Every component takes after measured plan standards. This approach disentangles support strategies and diminishes downtime. You can effectively get to basic components without major dismantling, keeping your scene operational.

Key Operational Advantages

Unmatched Safety Features

Your team operates with complete confidence thanks to comprehensive safety systems. Travel detection monitors every movement. Top punching protection prevents overextension. Rope loosening safeguards detect cable issues instantly. Overload protection stops operation before damage occurs.

Frequency Conversion Speed Control

Configure variable speed control to match your specific requirements. Run individual units for precise positioning or coordinate multiple machines for complex choreography. The frequency conversion system delivers smooth acceleration and deceleration curves.

Superior Load Management

The Stage Single-Layer Winding Boom Machine handles demanding applications with ease. Constant drum diameter throughout the lift cycle ensures predictable torque requirements. Your motor systems operate efficiently without fluctuating loads.

Acoustic Performance

Professional venues demand quiet operation during live performances. Our precision engineering keeps operational noise below 50dB(A). Vibration isolation and precision gearing eliminate disruptive sounds that could interfere with your productions.

Professional Applications

Theater and Opera Houses

Main stage battens require absolute reliability when flying heavy scenery over performers. The single-layer winding guarantees synchronized movement with video projection mapping and automated lighting systems. You achieve seamless scene changes without compromising safety.

Concert Halls and Auditoriums

Variable acoustic reflectors and suspended ceiling elements demand precise positioning. Our machines provide the high load capacity and absolute holding power needed for heavy acoustic clouds. Static suspension maintains position over extended periods without drift.

Broadcast and Recording Studios

Television production environments require exact repeatability for robotic camera shots. The Stage Single-Layer Winding Boom Machine manages pantographs and lighting trusses with precision. Compact horizontal mounting fits low-headroom grid installations perfectly.

Why Choose Stage Technology

Direct Manufacturing Advantage

We manufacture all components in-house, ensuring quality control and competitive pricing. Direct sourcing eliminates middleman markups while maintaining transparency. You benefit from bulk material procurement savings and flexible minimum order quantities.

Custom Engineering Solutions

Our technical team provides ODM/OEM services tailored to your specific requirements. We adapt load capacity, travel distance, and hanging point configurations to match your venue's needs. Close collaboration ensures products meet both creative and functional requirements.

Comprehensive Support Services

Installation and commissioning services ensure optimal performance from day one. Our 24/7 multilingual support team provides technical assistance worldwide. Regular follow-up and spare parts availability minimize downtime risks.

Proven Reliability

Years of successful international installations demonstrate our expertise. State-of-the-art testing facilities conduct rigorous 125% static and 110% dynamic load tests. Every unit meets stringent safety standards before shipping.

Technical Excellence Standards

Material Quality

High-tensile steel construction provides Safety Factors of 8:1 or 10:1 per DIN 56950 standards. Drum-to-rope diameter ratios exceed 30:1 to minimize bending stress. Premium materials ensure extended service life even under demanding conditions.

Component Longevity

Single-layer configuration reduces inter-strand friction and abrasive wear by over 40% compared to multi-layer systems. This design choice significantly extends wire rope life and reduces maintenance costs. Your investment delivers long-term value.

Get Started Today

Transform your venue's capabilities with professional-grade hoisting equipment. Our Stage Single-Layer Winding Boom Machine delivers the precision, safety, and reliability your productions demand.

Ready to discuss your specific requirements? Contact our engineering team at info@shstage.com for detailed specifications and customization options. We'll help you select the perfect configuration for your application.
