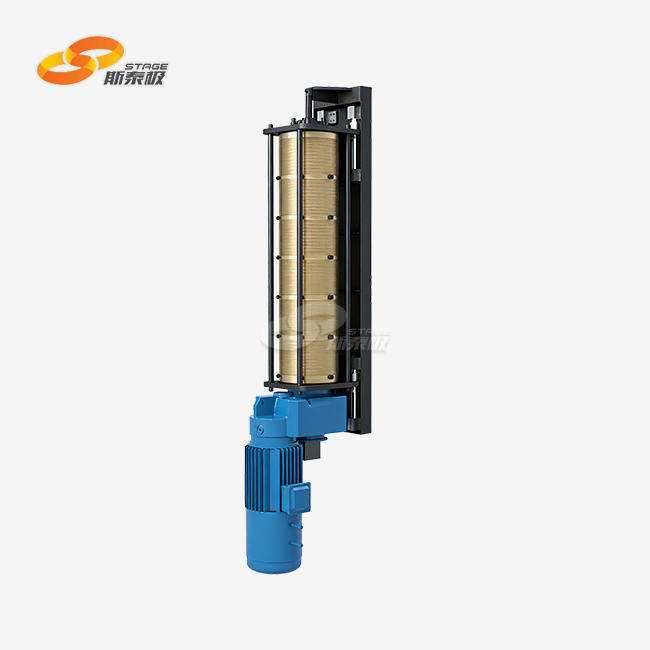

Vertical Installation Zero-fleet Stage Winch
Stage winch is a specialized lifting mechanism used in theater productions to raise and lower stage props, scenery, or lighting fixtures on stage.
Product Structure:
Composed of a dual brake deceleration motor, a drum, a vertical plate, a synchronous screw nut combination, a precision guide track, a base, a loose rope detection device, and a Cam limit device）
Product Structure:
Composed of a dual brake deceleration motor, a drum, a vertical plate, a synchronous screw nut combination, a precision guide track, a base, a loose rope detection device, and a Cam limit device）
- Product Description
Vertical Installation Zero-fleet Stage Winch: Professional Lifting Solutions for Modern Theaters
Our Vertical Installation Zero-fleet Stage Winch combines advanced engineering with compact design to meet your theatrical rigging needs. This specialized hoisting mechanism ensures consistent vertical lifting without lateral rope movement, making it perfect for venues with limited space. You'll experience enhanced performance through our innovative zero-fleet angle technology that eliminates side-loading stress on wire ropes.
Why Choose Our Vertical Installation Zero-fleet Stage Winch?
Compact Design with Maximum Performance
Space is often at a premium in theaters and performance venues. Our vertical installation design addresses this challenge directly. You get powerful lifting capabilities without requiring extensive wing space or complex pulley systems. The compact footprint makes installation straightforward, even in tight technical galleries.
Zero-Fleet Angle Technology
The standout feature of our system is the zero-fleet angle capability. Your wire rope exits at a constant vertical point throughout the entire lifting cycle. This technology prevents rope wear and extends equipment lifespan significantly. You'll notice reduced maintenance costs and improved safety margins.
Dual Safety Systems
Safety remains our top priority. Each unit features dual independent braking systems that engage automatically during power loss or emergency situations. You can trust our equipment to meet EN 17206 and DGUV V17 standards with safety factors exceeding industry requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
Travel（m） | 12,16,20,24,28 |
Load（kg） | 600,800,1000,1200,1400 |
Speed（m/s） | 0.2,0.4,0.6,0.8,1.0,1.2 |
Hook quantity（pcs） | 3,4,5,6 |
Wire Rope Diameter（mm） | 5,6,7 |
Voltage | AC380V |
Advanced Features for Professional Applications
Smart Integration Capabilities
Modern theaters demand intelligent control systems. Our winches integrate seamlessly with leading automation protocols. You can synchronize multiple units with lighting consoles and stage management systems. Real-time feedback ensures precise positioning for complex scenic movements.
Ultra-Quiet Operation
Acoustic performance matters in live entertainment. Our Vertical Installation Zero-fleet Stage Winch operates below 50dB, ensuring your equipment never interferes with performances. The precision-machined components minimize vibration and noise generation.
Extended Wire Rope Lifespan
Conventional frameworks regularly cause untimely rope wear through armada point varieties. Our zero-fleet plan dispenses with this issue completely. You'll involvement essentially longer rope life, lessening substitution costs and support downtime.
Applications and Use Cases
Theater and Execution Venues
Perfect for flying lighting bars, view secures, and acoustic boards. The vertical establishment works uncommonly well in dark box theaters and school corridors where space imperatives constrain conventional fixing options.
Television and Film Studios
Ideal for moving cameras, lighting hardware, and set pieces. The exact situating capability bolsters complex mechanized groupings required in cutting edge generation environments.
Concert and Occasion Venues
Reliable arrangement for lifting sound hardware, video screens, and arrange impacts. The vigorous development handles requesting visit plans and visit setup changes.
Quality Assurance and Certifications
Our fabricating forms take after strict universal measures. Each item experiences comprehensive testing counting 125% inactive stack tests and 110% energetic stack confirmation. CE checking and EN 17206 compliance guarantee worldwide acknowledgment and security compliance.
Installation and Support Services
Professional Installation
Our experienced specialists handle total establishment and commissioning. You get comprehensive preparing on operation and upkeep methods. We guarantee your framework coordinating flawlessly with existing infrastructure.
Comprehensive Warranty
Standard guarantee scope incorporates parts and labor for the to begin with year. Expanded benefit understandings give progressing back and preventive upkeep plans custom-made to your utilization patterns.
Global Specialized Support
Our multilingual back group gives 24/7 help. Whether you require save parts, specialized direction, or crisis bolster, we're prepared to offer assistance. Farther diagnostics capabilities frequently resolve issues without location visits.
Cost-Effective Investment
Direct fabricating kills middle person markups, conveying remarkable esteem. Our bulk obtainment preferences and productive generation strategies interpret to competitive estimating. Adaptable least arrange amounts oblige both trial establishments and large-scale ventures.
Get Started Today
For immediate assistance or to request a detailed quote, reach out to our expert team at info@shstage.com. Let us help you create the perfect lifting solution for your next project.
