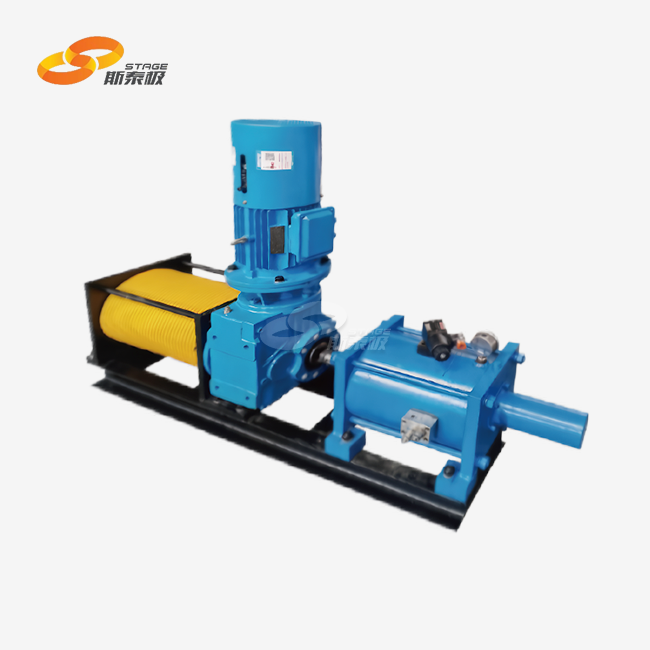

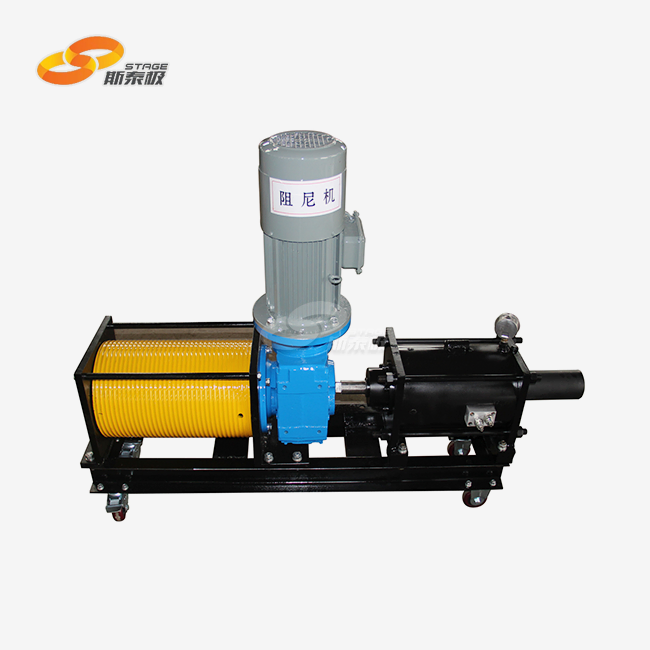

Fire Curtain Release System
2nd-Gen Damper: 4-speed intelligent control, impact reduction & longer lifespan; gear-adjustable descent, fire-compliant, pressure-difference resistant.
Load (Kg)：600
Speed (m/s)：0-1.5
Lifting route (m)：15
Haning points：1-2
Wire rope diameter (mm）：10-12
Motor power (kW）：3
- Product Description
Why Choose Our Fire Curtain Release System?
When fire emergencies strike, every second counts. Our Fire Curtain Release System provides the critical protection your building needs with intelligent, fail-safe technology. This progressed electromechanical framework consistently coordinating with your fire alert arrange to send defensive boundaries right away when threat is recognized. Not at all like conventional inactive fire entryways, our item offers adaptable sending over huge openings, making it culminate for theaters, shopping centers, and commercial buildings where ordinary fire obstructions essentially won't work.
Specifications
| Technical Specifications | Details |
|---|---|
| Load Capacity | 600 kg |
| Descent Speed | 0-1.5 m/s (adjustable) |
| Maximum Lifting Route | 15 meters |
| Hanging Points | 1-2 points |
| Wire Rope Diameter | 10-12 mm |
| Motor Power | 3 kW |
| Control System | 4-speed intelligent control |
How Our System Works?
Fire shade innovation makes undetectable fire obstructions that enact as it were when required. When your building's fire location framework recognizes a danger, it sends a flag to our Engine Control Unit. The framework at that point starts a controlled plunge arrangement, conveying the fire-resistant shade at ideal speed.
Our 2nd-generation damper innovation highlights four-speed cleverly control. This guarantees smooth sending whereas diminishing affect stretch on the whole instrument. The electromagnetic brake framework keeps up exact control all through the plummet process.
The gear-adjustable plunge instrument permits customization for distinctive building necessities. Whether you require quick arrangement for high-risk regions or slower plummet for involved spaces, our framework adjusts to your particular needs.
Key Applications
Theater and Excitement Venues
Stage situations require specialized fire security that doesn't meddled with exhibitions. Our framework gives concealed security that actuates as it were amid crises, keeping up the stylish astuteness of your venue.
Commercial Shopping Centers
Large retail spaces with open-plan plans advantage from adaptable fire compartmentation. The framework makes transitory fire dividers over wide openings, containing smoke and flares whereas permitting typical foot activity amid normal operations.
Office Buildings and Atriums
Modern structural plans regularly highlight broad open spaces that challenge conventional fire security approaches. Our discharge framework oversees virtual fire dividers over different zones, guaranteeing comprehensive security without compromising plan freedom.
Escalator and Lift Areas
Vertical transport zones make characteristic chimney impacts amid fires. Our deferred plummet include gives calculated time windows for tenant clearing some time recently fixing these basic pathways.
Advanced Safety Features
Our Fire Curtain Release System incorporates multiple safety layers to ensure reliable operation when you need it most. The fail-safe gravity mechanism guarantees deployment even during complete power failures. If main power and backup batteries fail simultaneously, the system still protects your building through mechanical release.
Obstruction detection technology prevents injury during deployment. Integrated beam sensors identify objects or people in the curtain's path, temporarily halting descent while issuing audio-visual warnings. Once the area clears, the system completes its protective seal.
Controlled descent velocity eliminates the dangers of unregulated gravity drops. Our back-EMF generator maintains safe speeds between 0.15-0.3 m/s, preventing structural damage and occupant injury during emergency deployment.
Installation and Maintenance Excellence
Professional installation forms the foundation of effective fire protection. Our certified installation teams understand building codes and manufacturer specifications thoroughly. We ensure proper integration with your existing fire alarm systems and building management networks.
Regular maintenance keeps your product ready for action. Our service schedule includes comprehensive inspections, mechanical testing, and electronic system verification. We maintain detailed service records to support your compliance requirements and insurance obligations.
The system's modular design simplifies maintenance procedures. Components are easily accessible for routine inspections and quick replacement if needed. Our 24/7 support team provides immediate assistance for any technical concerns or emergency situations.
Contact Us?
We manufacture our Fire Curtain Release System using high-strength materials and rigorous quality control processes. Every unit undergoes 125% static load testing and 110% dynamic testing before shipment. This ensures your system will perform reliably throughout its operational lifetime.
Ready to protect your building with advanced fire safety technology? Contact our team at info@shstage.com for detailed specifications and custom configuration options. Our experts will help you design the perfect fire protection solution for your specific requirements.
